Call or email us for information on any of our services or products.
| |
) $189.00 & $229.00 As shown |

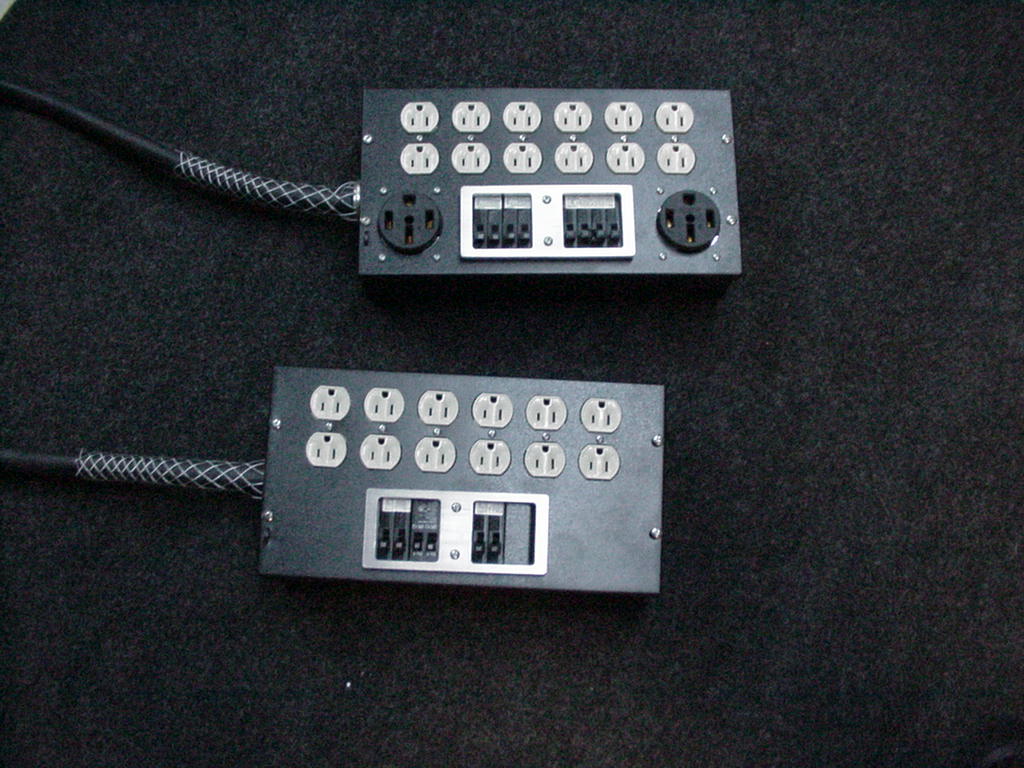

These are our
lowest cost system. These small units are good up
to 200 amps and can contain any connectors that will fit on the panel. With up
up to 8 circuits these make a great entry level system for smaller sound
or lighting systems The feeder cable is sold separately and can be any size from 8/4 for lighter
loads up to 4/4 for larger systems. This unit can be built to your specifications. Call for pricing and design details. |
|
| |
) $209.00 As shown with L14-30 in/thru |

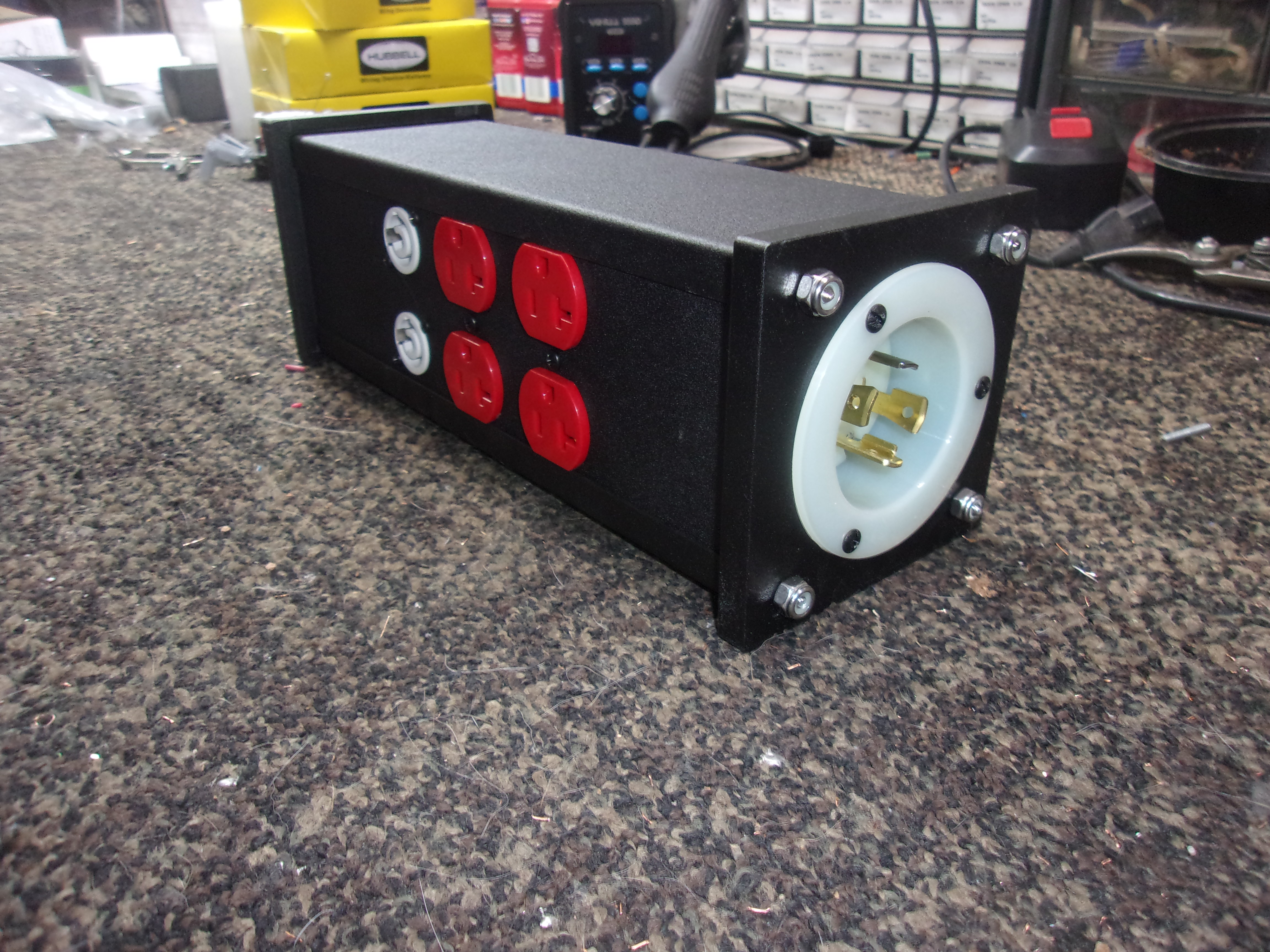

Drop box style breakout. Sometimes called a power brick. Small, rugged and low cost. Very flexible design allows almost any configuration of connectors, inlets or in/thru including pin & sleeve. Circuit breakers can also be fitted if needed. This unit can be built to your specifications. Call for pricing and design details. |
|
| |
) $399.00 |

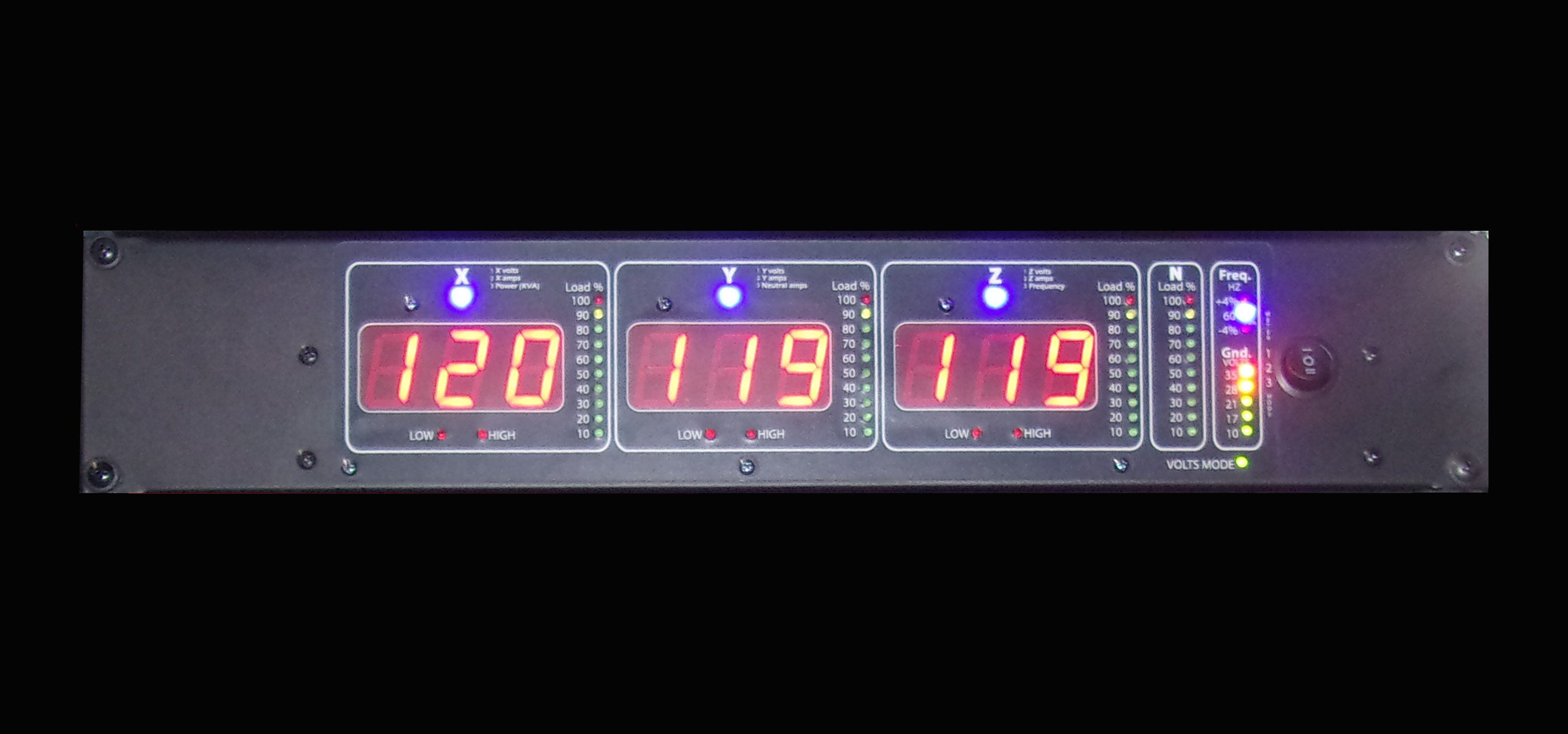

Meter package for your power distro, one or three phase**. It has three modes of operation. In each of the three modes the digital meters will display: Mode1: from left to right ac volts for x, y, and z. Mode 2: from left to right ac amps for x, y, and z. Mode 3: from left to right Total KVA being consumed by the load, ac amps on the neutral and line frequency. There are several LED bargraph displays.From left to right indicate: X amps, Y amps, Zamps, Neutral amps, upper right Frequency, lower right Ground to Neureal volts. The unit comes with a 36" wiring harness and four current sensors. **On the single phase unit the "z" meter always reads line frequency and there is no "z" amps bargraph and only 3 current sensors. |
|
| |
) $249.00 As shown |

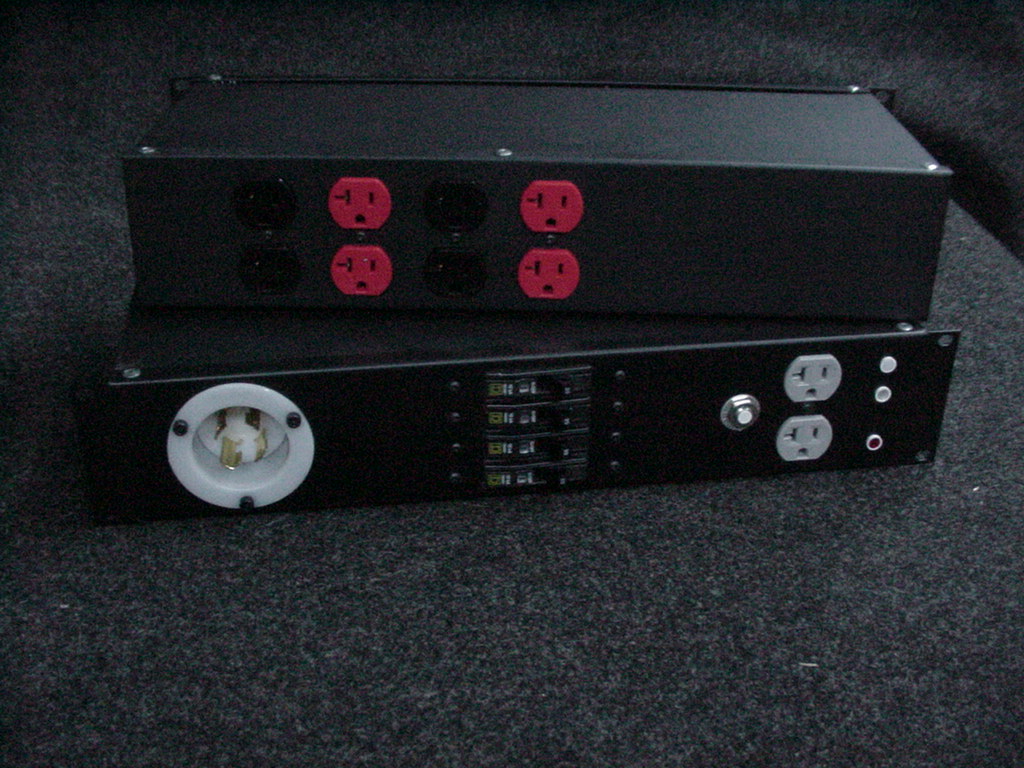

2U rack power module. This can be fitted with any NEMA inlet or in/thru. Or 30/60 amp pin & Sleeve inlet with no thru. there are 4 duplex edisons on the back however other connectors such as the "TT-30" RV connector used by crown, twistlocks or powercons can be fitted in their place. This unit can be built to your specifications. Call for pricing and design details. |
|
| |
) $339.00 As shown |

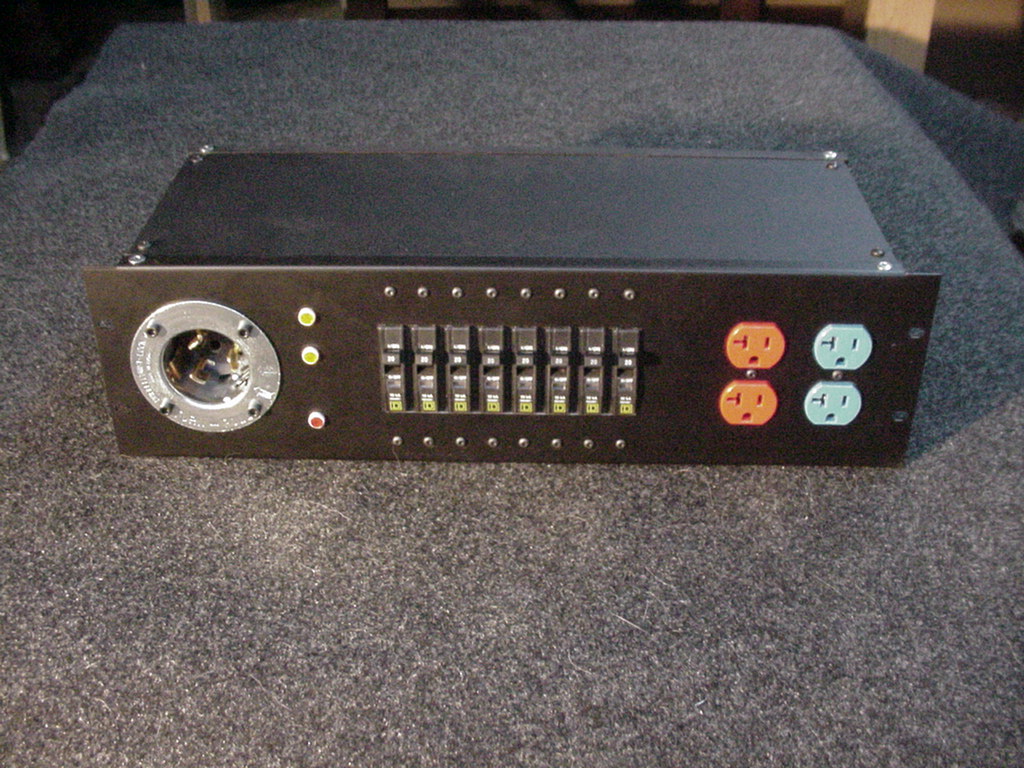

3U rack power module.
This can be fitted with any NEMA inlet or in/thru. Or 30/60/100 amp pin & Sleeve inlet with no thru. The unit shown is fitted with 6 L6-30 twist locks on the rear and 2 duplex Ediaons on the front, all on separate SquareD industrial breakers. This unit can be built to your specifications. Call for pricing and design details. |
|
| |
) $989.00 As shown |

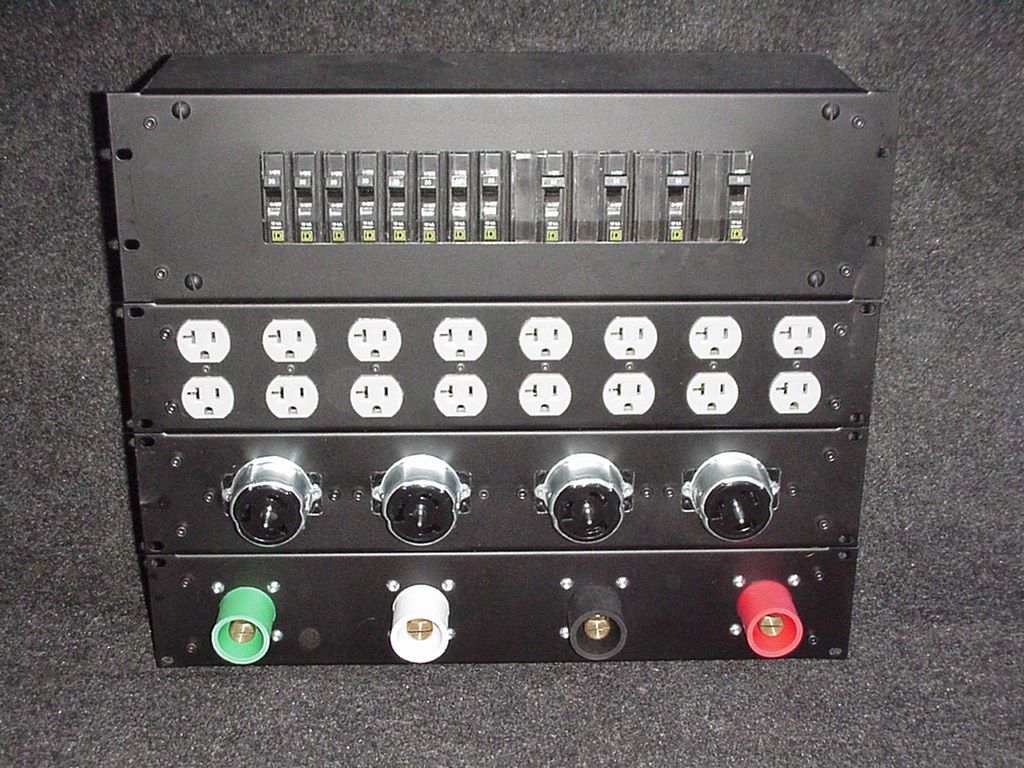

4 50A 125/250 CS6369, 8 duplex Edison distro. It's our most popular design for audio only or audio
with moderate (10kw) lighting loads. This unit uses up to 21 SquareD type QOxx
breakers. we can offer this unit in three phase for only $60.00 more. This unit can be built to your specifications. Call for pricing and design details. |
|
| |
) $189.00 As shown |

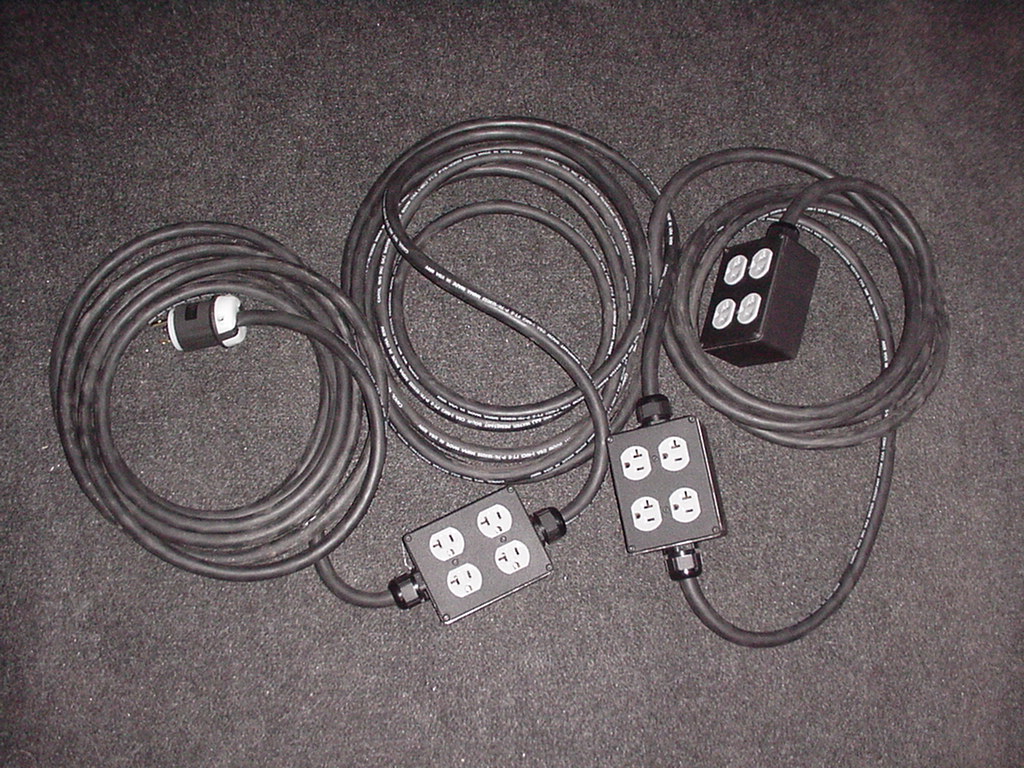

This is a 4
drop stage stringer designed for a 24' stage, the drops are 6.5 feet
apart. The distance from the male plug to the first drop is 20 feet making
backline power a simple one-step operation. The unit features an L14-20
inlet, 8 color coded Edisons, Die cast aluminum drop boxes, Matt black
non-reflective powder coat finish. You may order this unit with more or less drops and in any length. You may specify a different inlet connector or a three-phase version with an L21-20 or other NEMA connector. Powercon and powercon true1 can also be fitted, it's also possible to mix powercon with Edisons. This unit can be built to your specifications. Call for pricing and design details. |
|
| |
) $279.00 As shown |

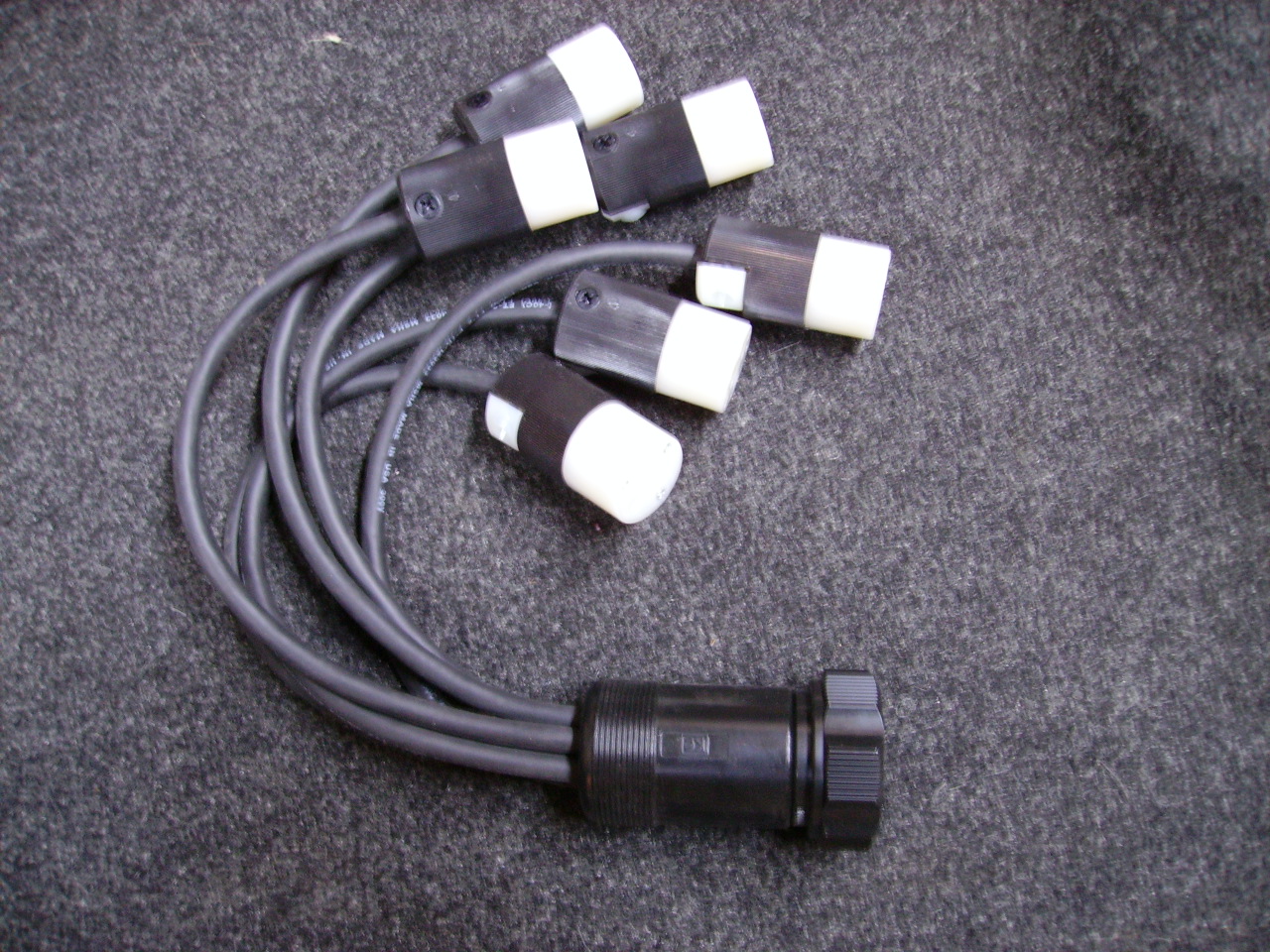

Socco to edison or 20A powercon fanout This unit can be built to your specifications. Call for pricing and design details. |
|
| |
) $249.00 As shown |

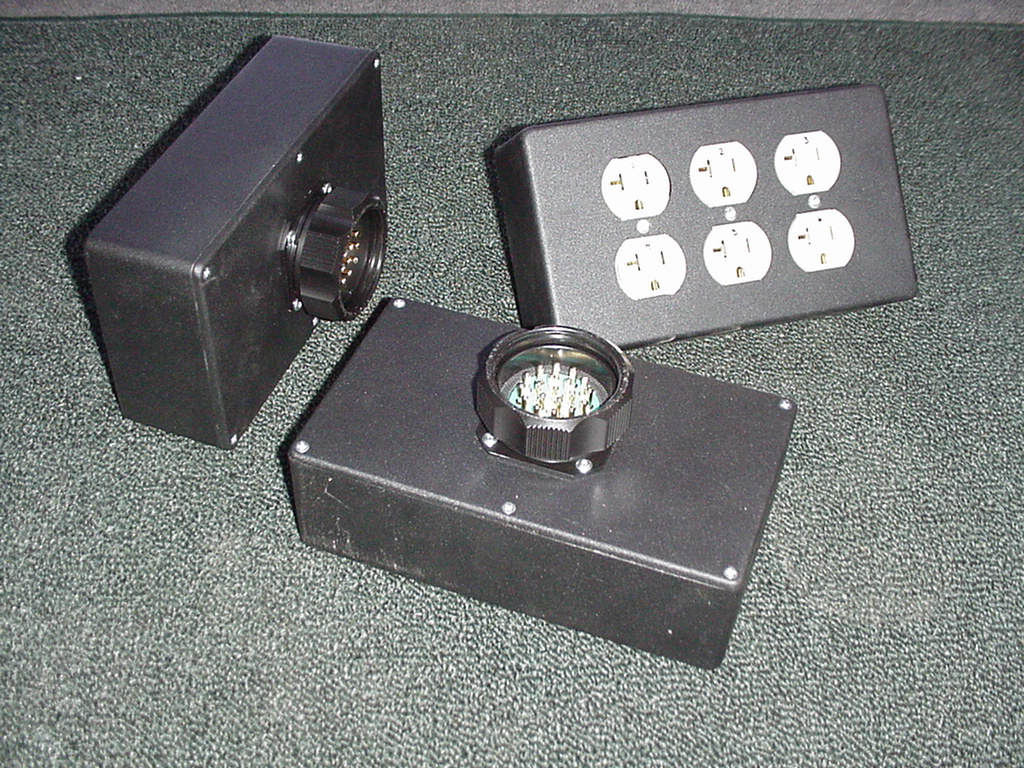

Socco to edison or 20A powercon brick. Small & rugged includes 1//4-20 threaded hole to attach any standard clamp. can also just hang from the end of your socco cable. |
|
| |
)
$1295.00 As shown |

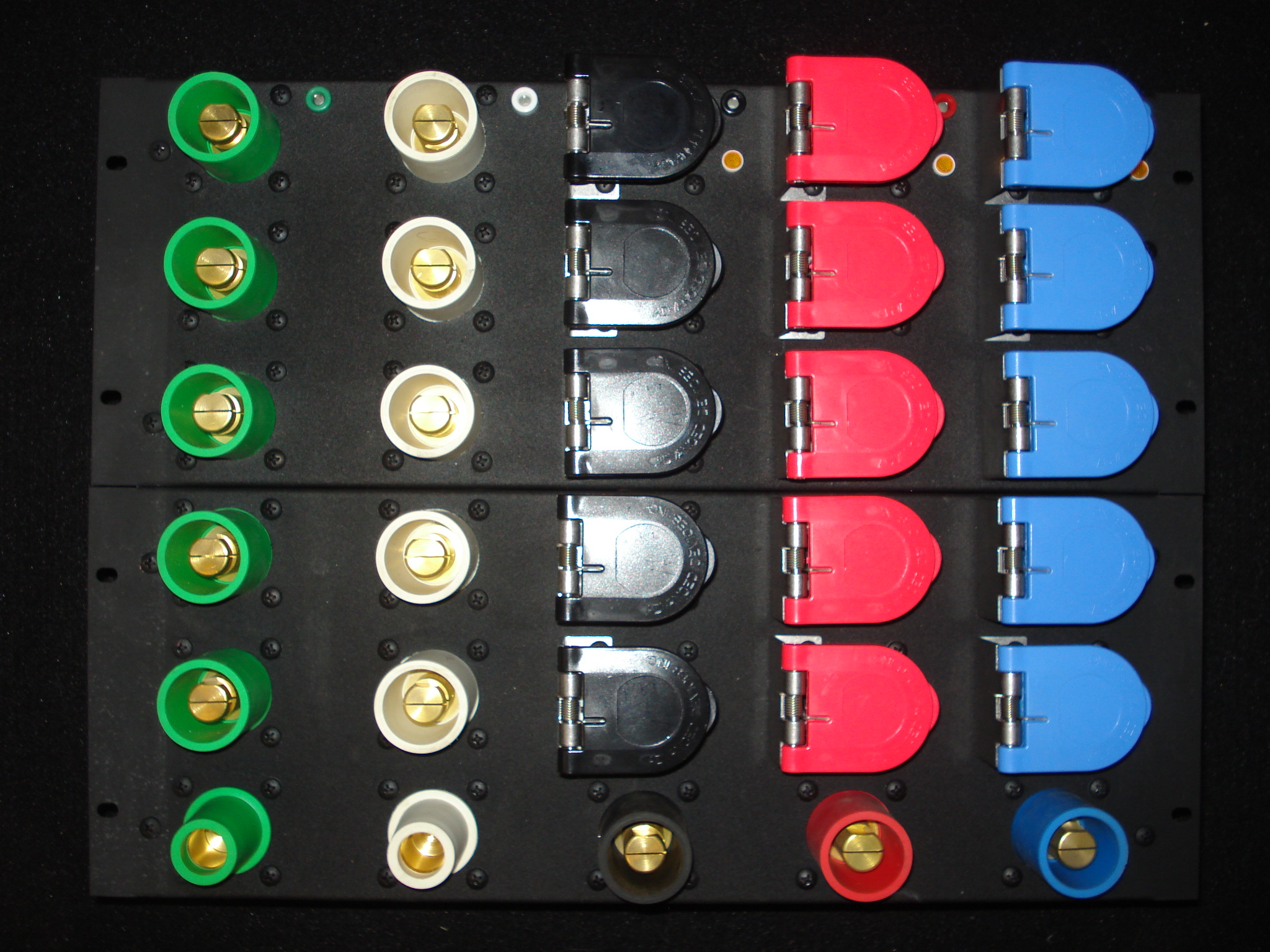

One in five out cam splitter, available in single phase or three phase with fewer or more splits as needed. It can also be built with double neutrals for applications over 390 continous amps. This splitter can also be built using series 15 mini-cams. This unit can be built to your specifications. Call for pricing and design details. |
|
| |
) |
Contact us for any of your custom power needs. Quotes and layout drawings are always free and there is no obligation to purchase. No matter what your project is we can provide you with parts, pre-cut panels or enclosures or design assistance. |
|
| |
